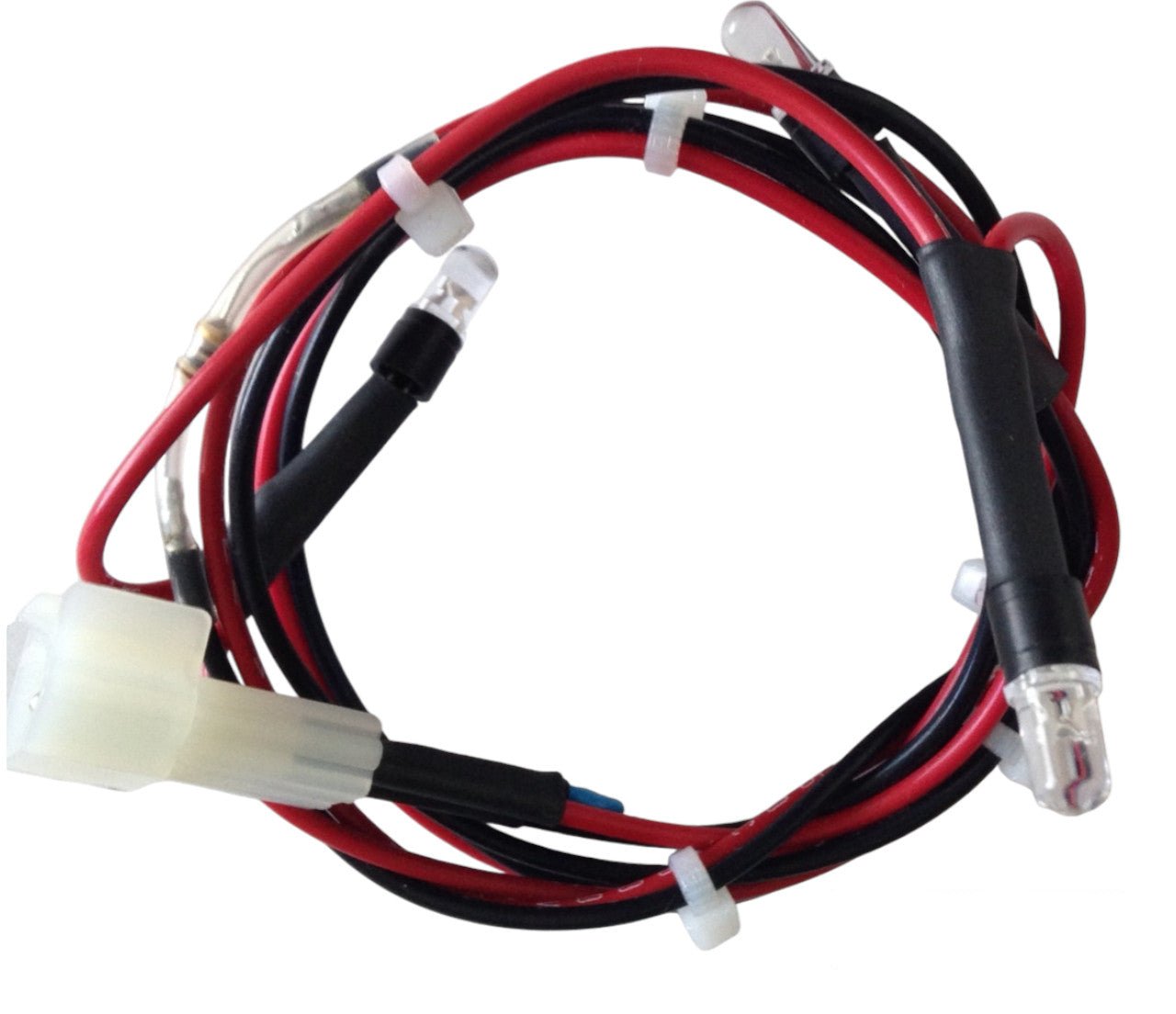

Lynx (L27/L30-IR)/Sedona LED Wire Harness Assembly - 80435

LED Wire Harness Assembly for Knob Lighting

If your grill's knobs aren’t lighting up, you may need to replace the LED Wire Harness Assembly. This replacement kit enables the blue backlighting to function properly behind the knobs, providing enhanced visibility and a stylish look.

Compatible Series:
L, M, N, P, Q

Fits Lynx Models:

• L27-2-2010
• L27F-2-2010
• L27FR-2-2010
• L27PSFR-2-2010
• L27PSR-2-2010
• L27R-2-2010
• L30PSFR-1-2010
• L30PSR-1-2010
• L30R-1-2010

Fits Sedona Models:

• L400 with IR

Installation Instructions (for LED Light Assembly, 2011 to Present):

1. Start by removing the knobs.
2. Locate the two tabs at the bottom of the panel and pull both toward the center simultaneously.
3. Pull out the drip pan about a quarter of the way.
4. Carefully lay down the panel on the drip pan, being mindful of the attached wires.
5. Follow the wiring to detach and replace one LED at a time, starting from the right side. Install the new LED immediately after removing the old one to ensure proper placement.

Alternate Part Number: 80435

This assembly is an essential component to maintain the functionality and aesthetic appeal of your grill, ensuring it remains in optimal condition.
