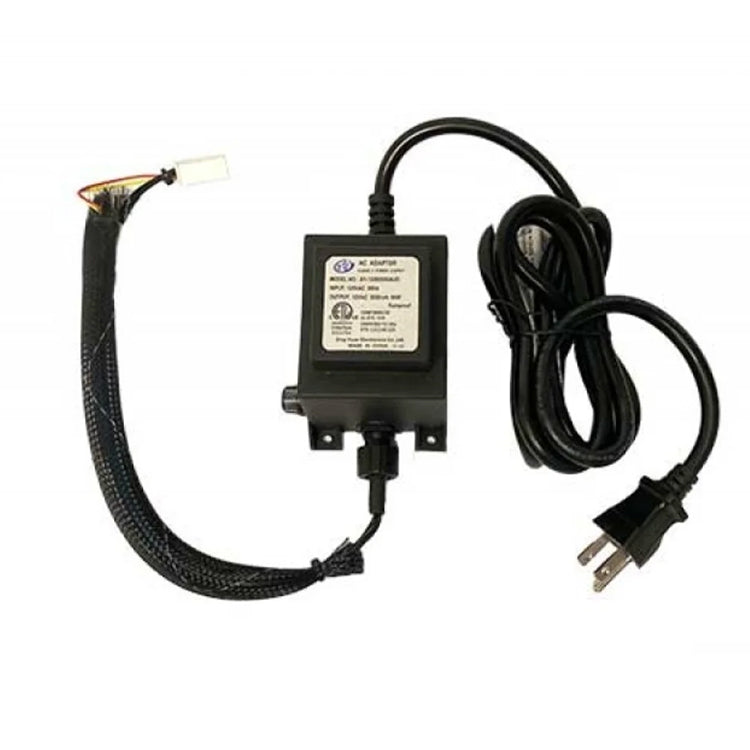

American Outdoor Grill Replacement Power Supply with Harness (24187-64 + 24-B-56)

AOG L Series Replacement Power Supply / Transformer with AC/DC Converter Harness

Keep your American Outdoor Grill electrical and lighting systems operating properly with this OEM AOG L Series replacement power supply and AC/DC converter harness. Designed for compatible AOG (American Outdoor Grill) L Series grills manufactured from 2019–2025, these components provide the power conversion and wiring connection required for the grill's interior lights, control panel lighting, electronic ignition, and other supported electronic components.

Not compatible with redesigned 2026 AOG models due to changes in the electrical architecture.

OEM AOG Replacement Components

• Brand: AOG (American Outdoor Grill)
• Series: L Series
• Compatibility: L Series grills manufactured 2019–2025
• OEM Parts: Yes
• Power Supply / Transformer Part Number: 24187-64
• AC/DC Converter Harness Part Number: 24-B-56
• Sold: Individually
• 2026 Models: Not compatible

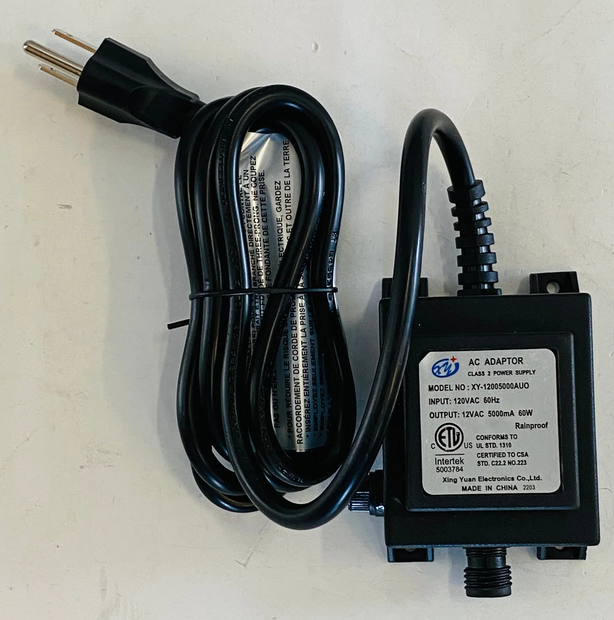

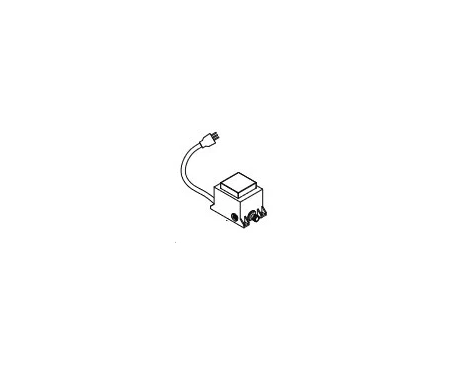

AOG L Series Power Supply / Transformer – 24187-64

The AOG replacement power supply, also referred to as a transformer, provides the converted electrical power required to operate compatible L Series grill lighting and electronic systems.

Before replacing the transformer, inspect the power supply fuse (24-B-57). A blown fuse can interrupt electrical power and produce symptoms similar to a failed power supply.

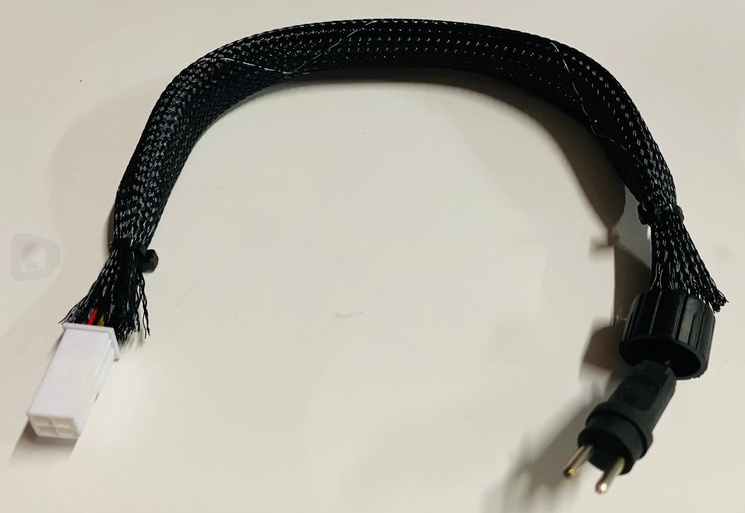

AOG AC/DC Converter Harness – 24-B-56

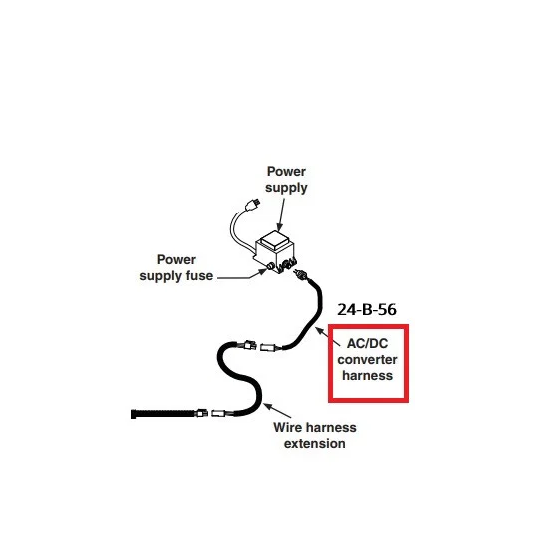

The genuine AOG 24-B-56 AC/DC converter harness connects the grill's internal wiring to the external AC/DC power supply. The harness connects to the grill-side wiring through the Wiring Harness Extension (24182-53) and plugs into the power supply on the opposite end.

This connection supplies converted DC power to the grill's lighting and supported electronic components.

When Should the Converter Harness Be Replaced?

Consider replacing the AOG 24-B-56 converter harness when:

• Grill lights or electronic components do not receive power
• Connectors show corrosion or deterioration
• The original harness has visible heat damage
• Wiring or connectors are damaged
• The harness no longer maintains a reliable electrical connection

Tech Tip: Inspect the Fuse Before Replacing Electrical Parts

Before replacing the power supply or converter harness, disconnect electrical power to the grill and inspect the AOG power supply fuse (24-B-57) located directly on the transformer.

Check the fuse for:

• A broken internal filament
• Darkened or discolored glass
• Heat damage
• Other visible signs of failure

The 24-B-56 converter harness connects to the power supply near this fuse. If a replacement harness does not restore power, the fuse and power supply should also be inspected.

Confirm Compatibility Before Ordering

For proper fit and electrical compatibility, compare your original components with the replacement parts before ordering. Verify the connectors, mounting configuration, wiring connections, and part numbers, and reference your AOG owner's manual when necessary.

Using the correct OEM American Outdoor Grill replacement power supply and wiring harness helps ensure straightforward replacement while maintaining the intended lighting, ignition, and electrical performance of your AOG L Series grill.
