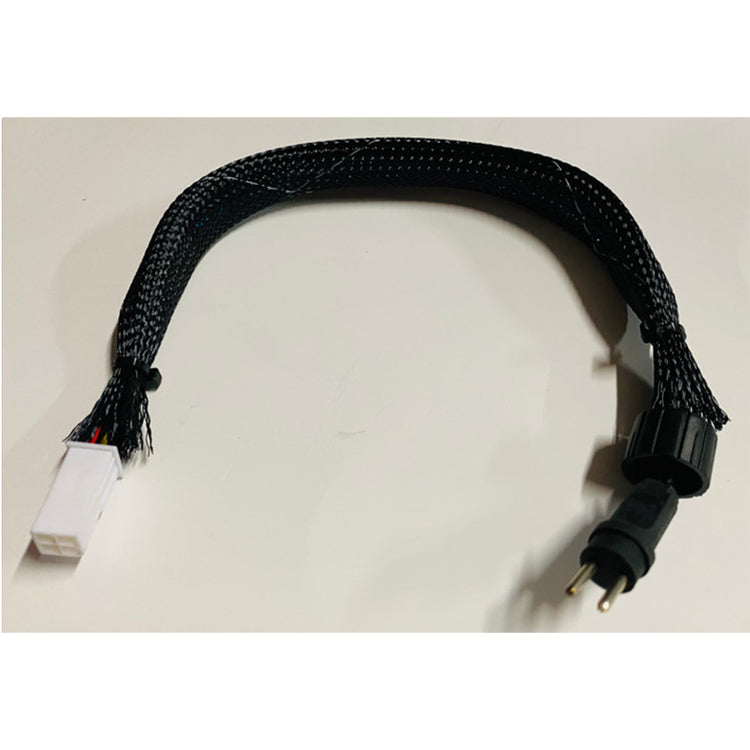

AOG L Series AC/DC Converter Harness – OEM Replacement Part 24-B-56
Keep your AOG L Series grill lighting and electronic components properly powered with the genuine AOG (American Outdoor Grill) AC/DC Converter Harness, Part #24-B-56. This OEM replacement harness is designed specifically for compatible AOG L Series grills, providing the correct connection between the grill's internal wiring and external AC/DC power supply.
Sold individually.
How the AOG 24-B-56 Converter Harness Connects
The 24-B-56 AC/DC converter harness connects the grill-side wiring to the AC/DC power supply:
- Connects to the grill wiring through the Wiring Harness Extension (24182-53)
- Plugs into the grill's AC/DC power supply on the opposite end
- Delivers the converted DC power needed to operate grill lighting and electronic components
Quick Fit Check
- Brand: AOG (American Outdoor Grill)
- Series: L Series
- Part Number: 24-B-56
- Part Type: AC/DC Converter Harness
- OEM Part: Yes
- Quantity: 1 harness
Tech Tip: Check the Power Supply Fuse First
Before replacing the AOG 24-B-56 converter harness, inspect the AOG Power Supply Fuse (24-B-57). This fuse is mounted directly on the transformer and can interrupt power to the grill's lighting and electronic systems if it fails.
Remove the fuse and check for:
- A broken internal filament
- Darkened or discolored glass
- Visible heat damage
- Other signs that the fuse has failed
The 24-B-56 converter harness plugs into the power supply port located immediately adjacent to the 24-B-57 fuse. If the converter harness has been replaced but the grill still does not receive power, the fuse should also be checked.
When Should the 24-B-56 Harness Be Replaced?
Replacement may be necessary when:
- Grill lights no longer power on
- Electronic components are not receiving power
- Connectors show corrosion or deterioration
- The original harness has visible heat damage
- Wiring or connectors are physically damaged
Using a genuine OEM AOG converter harness helps ensure proper fit and electrical compatibility with the intended L Series grill system. Checking both the harness and power supply fuse can help identify the source of an electrical problem and restore proper operation of your AOG L Series grill lighting and electronics.
Replacing a damaged 24-B-56 harness is a straightforward way to maintain the original electrical connections and dependable performance of your AOG grill.
