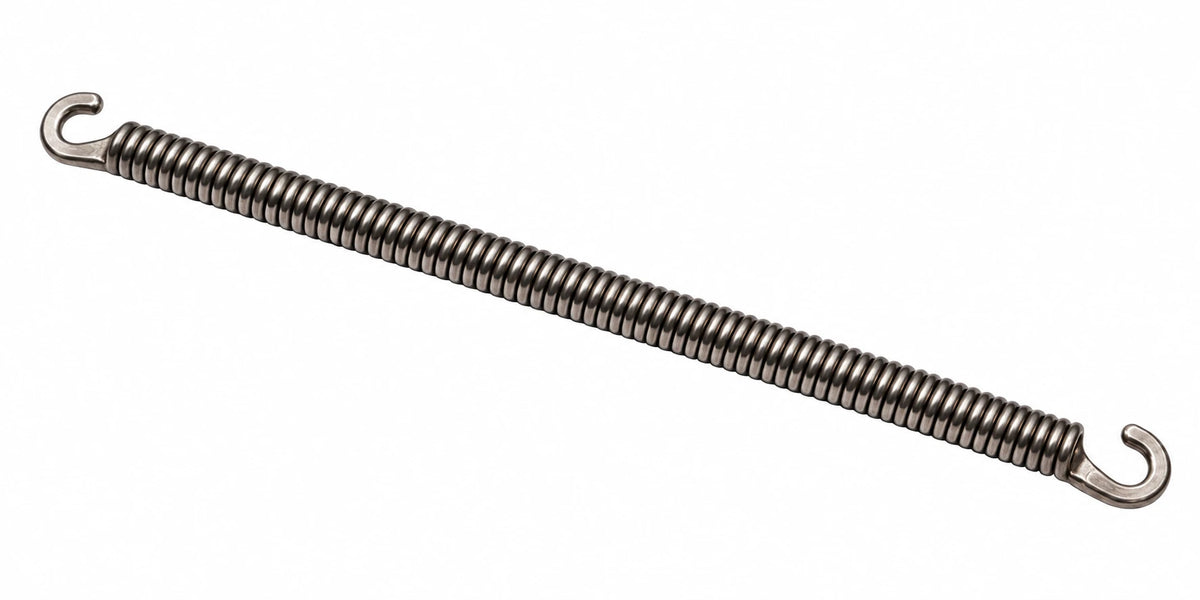

Lynx (27/36) and Sedona Extension Spring with Hook - 31780

Extension Spring for Hood Assist - Sold Individually

This extension spring is designed for easy attachment to the hood of your grill, acting as a part of the hood assist system. It significantly reduces the effort required to open the hood, making it feel lighter and easier to handle.

Compatibility:

• Sedona Series: Models A - B
• Lynx Series: Models H, I, J, K, L, M, N, P, Q, U
• Model Years Supported: 2006 - Present

Applicable Models:

• 27" Models: L27-2006, L27-2007, L27-2008, L27FR-1-2006, L27FR-1-2007, L27FR-1-2008
• 36" Models: L36-1, L36-2006, L36-2007, L36-2008, L36FR-1-2006, L36FR-1-2007, L36FR-1-2008, L36PSFR-1-2006, L36PSFR-1-2007, L36PSFR-1-2008, L36PSR-1-2006, L36PSR-1-2007, L36PSR-1-2010, L36R-1-2006, L36R-1-2007, L36R-1-2008, L36R-1-2010
• Sedona Series Specific Models: N (L500), P, and L600, L700

Dimensions:

• Overall length (end to end): 9 1/4" (resting dimension: 9.00” ± 0.125”).
• Tension for L36 & L500 models: 13.00 lbs. ± 1.50 lbs.

This spring is a direct replacement part to ensure smooth operation of your grill hood, maintaining the ease and convenience that the original hood assist system provides.
